Noggymike
Veteran


Car: 2002 B5 RS4
Power: 430 bhp
Torque: Whatever
Engine code: BHP

Joined: 07 Oct 2012
Posts: 12184

Location: In front of you, lol'ing

PostPosted: Thu Dec 01, 2016 7:39 pm  Reply with quoteBack to top

coullstar wrote:
Noggymike wrote:
Those headlight washer jets are something else !


When I had the S2 I did smack me knee of them a couple of times.




PMSL G

Is that why you walk with a Gangster limp?



_________________
Fancy a new lifetime residual revenue stream?

Pm me.
View user's profileSend private messageVisit poster's website
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Thu Dec 01, 2016 9:10 pm Reply with quoteBack to top

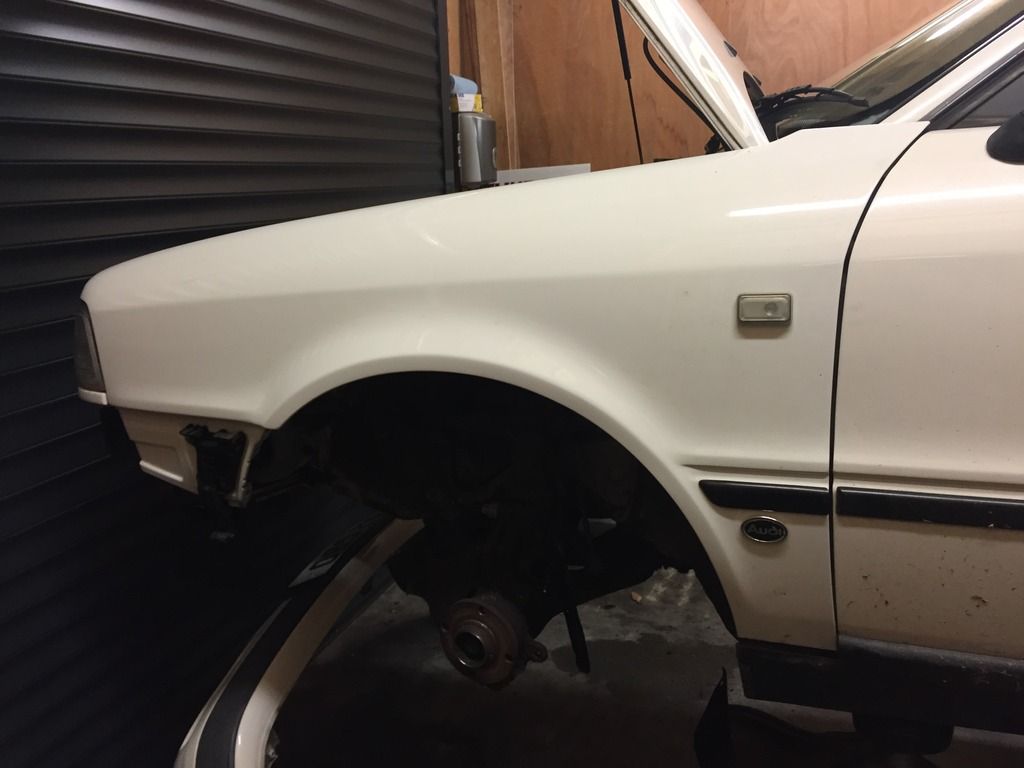

So got the drivers side wing off last night, and both new wings on!! woohoo!

The drivers side removal is slightly trickier than the near side actually.

But basics are the same as above..

So..(pic numbers are refering to the pics above)

1. Remove bottom plastic trim at the rear of the wing ( it covers two 25 hex bolts) and will need to be glued back on new wing..(no pic)
2. Remove 2 said 25mm hex bolts (no pic)
3. Remove piece of trim under main indicator housing, I used trim removal tool (pic 8,9)
4. Remove 30mm hex bolt under that piece of trim (pic 10)
5. Remove the bolts along the top of the wing, mixture of 10mm and 13mm (there is one under the foam end of the scuttle panel! Little blighter!!) oh and there is also a small black clip on both sides which do a cable and bonnet release cable. (Pics 11,12,13,14)
6. Remove the 25mm hex at the top rear of wing, you need to open the door to see it. (Pic 15)

Now it changes a bit on the rear of the wing…

7. There is the black plastic tank/container (pic 17)(not sure what its for?) that is sitting in front of the black plastic vertical piece that the other side has so there are a few extra bolts and nuts to remove..Remove the 10mm nut half way down the container (pic 1 and it then reveals the rest of the bolt, this is the same as the 10mm bolt that you removed on the nearside.  There are then also two other 10mm screws to remove (pic 19,20) I must add that the pics of the funny bolt, the one in the middle i placed in the wrong place for the photo!! it should be slightly to the right as you look at the photo! In pic 20 you can see a kink in the pipe on the container, the pipe will split here and can then be swung forward and out of the way a bit so that you can get behind it.

8.Remove the wiring for the side repeater.

17.


18.


19.


20.

Putting the new wings back on is really just a reverse of the taking off.  Remember to out the indicator bulbs back in before screwing on the rear black plastic vertical bit.  I took photos, as you can see, as i went along so that i could reference them when putting everything back together!  Keep your screws etc in a tub/safe, so as not to lose anything too! haha!

old and new wings..offside..




nearside…



_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
lewiswlawrence
Skilled


Car: S4 B5 2000 facelift
Power: >500
Torque: >500

Joined: 23 Nov 2011
Posts: 1079

Location: Aberdeenshire

PostPosted: Thu Dec 01, 2016 11:03 pm Reply with quoteBack to top

I am enjoying this thread, keep up the good work. Pretty sure an 80 was the first Audi I ever drove, a 1.8 with an auto box my father in law used to own. Compared to the other crap I had owned and driven I was amazed at how solid and heavy it felt. Styling wise they have aged well, keen to see what you do with it.

_________________
-----
Lewis
My attempt to make my ideal road car:
http://audisrs.com/about54755.html
View user's profileSend private message
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Fri Dec 02, 2016 7:42 am Reply with quoteBack to top

lewiswlawrence wrote:
I am enjoying this thread, keep up the good work. Pretty sure an 80 was the first Audi I ever drove, a 1.8 with an auto box my father in law used to own. Compared to the other crap I had owned and driven I was amazed at how solid and heavy it felt. Styling wise they have aged well, keen to see what you do with it.


Cheers Lewis!  Hopefully not having to do too much to it! haha  A few wee jobs but after that not much.  Many change the front bumper, but really don't need to and it would be purely cosmetic,

_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Fri Dec 02, 2016 7:46 am Reply with quoteBack to top

From page 1

So list of jobs to do...

Change rear discs and pads - needs doing tbh - bought all round and waiting to be fitted
Change rear caliper n/s/r - sticking..all calipers off for a refurb at biggred
Change front discs and pads - bought, waiting to be fitted
Drivers door handle - its a bit loose..
Cv joints - starting to make a clicking noise..
Odometer and trip - not working, could be a cog on the inside which is worn..
Sunroof slide - tilt works, slide doesn't
Front floor mats - needs some..
Foam bit at front under bonnet - missing on one side
Balance original wheels - just because..

Change front wings - rusty.. -done
Buy spigot rings - done
Bonnet adjust for closing - done
Balance Oz wheels - done
Check slider pins on rear brakes - done

_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
Noggymike
Veteran


Car: 2002 B5 RS4
Power: 430 bhp
Torque: Whatever
Engine code: BHP

Joined: 07 Oct 2012
Posts: 12184

Location: In front of you, lol'ing

PostPosted: Fri Dec 02, 2016 3:53 pm Reply with quoteBack to top

guymcc wrote:
From page 1

So list of jobs to do...

Change rear discs and pads - needs doing tbh - bought all round and waiting to be fitted
Change rear caliper n/s/r - sticking..all calipers off for a refurb at biggred
Change front discs and pads - bought, waiting to be fitted
Drivers door handle - its a bit loose..
Cv joints - starting to make a clicking noise..
Odometer and trip - not working, could be a cog on the inside which is worn..
Sunroof slide - tilt works, slide doesn't
Front floor mats - needs some..
Foam bit at front under bonnet - missing on one side
Balance original wheels - just because..

Change front wings - rusty.. -done
Buy spigot rings - done
Bonnet adjust for closing - done
Balance Oz wheels - done
Check slider pins on rear brakes - done



Nice progress Guy


However reading your list just confirms why I don't do one for the Quattro

_________________
Fancy a new lifetime residual revenue stream?

Pm me.
View user's profileSend private messageVisit poster's website
Ian_C
Experienced



Joined: 26 Feb 2011
Posts: 2900

Location: Bedford

PostPosted: Fri Dec 02, 2016 5:02 pm Reply with quoteBack to top

guymcc wrote:
Ian_C wrote:
guymcc wrote:
So list of jobs to do...

Change front wings - rusty..
Change rear discs and pads - needs doing tbh..
Change rear caliper n/s/r - sticking..
Change front discs and pads - wobble under braking and are getting low anyway.
Drivers door handle - its a bit loose..
Cv joints - starting to make a clicking noise..
Odometer and trip - not working, could be a cog on the inside which is worn..
Sunroof slide - tilt works, slide doesn't
Front floor mats - needs some..
Foam bit at front under bonnet - missing on one side
Balance original wheels - just because..

guymcc wrote:
7.

Looks good!

Fit an S2 / Mk4 V6 / late Mk4 Cab front bumper!  Would look soo much fresher and beefier!



I'm on the lookout for an S2 or b4 (mk4?) v6 one. So yeh, if you or anyone knows of one going then give me a shout!

@Mike, haha the pink removal tools!
The second wing came off no probs.. Update coming..

S2 forum is worth a look!  S2 parts prices are definitely going now though.....

_________________
B6 S4 Avant gone but never ever forgotten
View user's profileSend private message
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Sat Dec 03, 2016 2:20 pm Reply with quoteBack to top

I'll check in with the s2forum, see what's about!!

Getting there with the jobs...

Got the odometer pulled apart following the guide on odometer gears.com, and I've got one of my 15 teeth missing from the small cog, so going to get a replacement for that...

Pic of the missing tooth and the other pic is the bigger cog underneath the small cog, it looks to be fine condition.




_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
Noggymike
Veteran


Car: 2002 B5 RS4
Power: 430 bhp
Torque: Whatever
Engine code: BHP

Joined: 07 Oct 2012
Posts: 12184

Location: In front of you, lol'ing

PostPosted: Sat Dec 03, 2016 6:08 pm Reply with quoteBack to top

Nice work Magnum PI!

_________________
Fancy a new lifetime residual revenue stream?

Pm me.
View user's profileSend private messageVisit poster's website
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Sat Dec 03, 2016 10:31 pm Reply with quoteBack to top

Noggymike wrote:
Nice work Magnum PI!


Cheers Dude!

_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Tue Dec 06, 2016 8:56 pm Reply with quoteBack to top

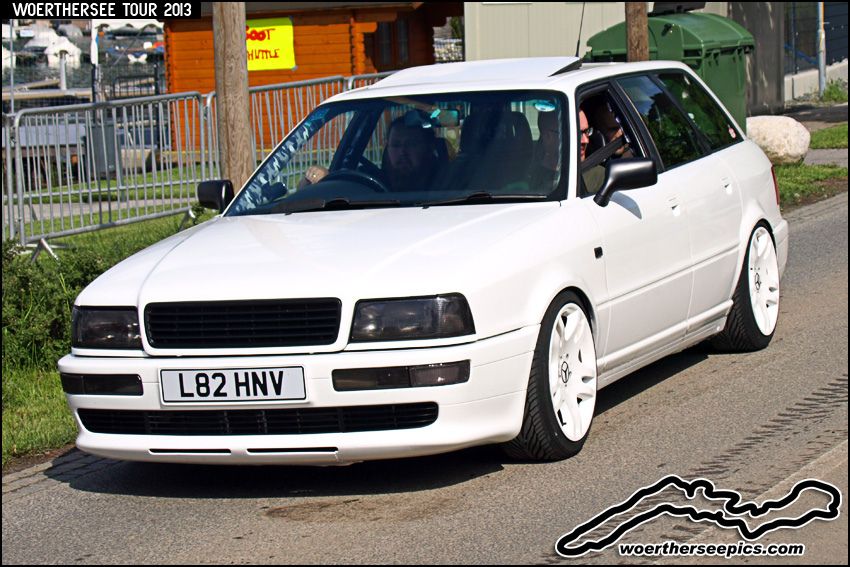

Some inspiration for my little old avant...haha, looks to be a v6 bumper?


_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
Noggymike
Veteran


Car: 2002 B5 RS4
Power: 430 bhp
Torque: Whatever
Engine code: BHP

Joined: 07 Oct 2012
Posts: 12184

Location: In front of you, lol'ing

PostPosted: Tue Dec 06, 2016 10:38 pm Reply with quoteBack to top

No to the Merc centre caps!

_________________
Fancy a new lifetime residual revenue stream?

Pm me.
View user's profileSend private messageVisit poster's website
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Tue Dec 06, 2016 10:41 pm Reply with quoteBack to top

Noggymike wrote:
No to the Merc centre caps!


Attention to detail...I like it!

_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
Noggymike
Veteran


Car: 2002 B5 RS4
Power: 430 bhp
Torque: Whatever
Engine code: BHP

Joined: 07 Oct 2012
Posts: 12184

Location: In front of you, lol'ing

PostPosted: Tue Dec 06, 2016 10:48 pm Reply with quoteBack to top

guymcc wrote:
Noggymike wrote:
No to the Merc centre caps!


Attention to detail...I like it!



_________________
Fancy a new lifetime residual revenue stream?

Pm me.
View user's profileSend private messageVisit poster's website
guymcc
Expert


Car: Misano RS4 B5
Power: 504ps
Torque: 604nm

Joined: 03 Jul 2010
Posts: 4589

Location: Aberdeenshire

PostPosted: Mon Dec 12, 2016 10:05 pm Reply with quoteBack to top

Yet to be tested to see if it is working again.. that will have to wait until the brakes are all put back together..they should be back from the refurb company tomorrow...

Followed the excellent guide on odometers.com and literally its taking screws off.. the tricky bit that they mention is getting the needle off... mine came off fairly easily!

Take pics as you go of the different screws would be my advice, and have a wee container to put them all in.

Basically the small yellowish cog on mine was missing a tooth so appeared to stationery against the other cog that in turn turns the odo and trip.  So very kindly a chap called Greg_s on S2 forum posted one out to me as he had spares!

Any questions fire away..

Pics...

old one off and new one on..edit...these are my 2.5 year olds sons fingers by the way!!! Honest!! lol



speedo part back in..



the back showing the various screws to be put back in..




The two screw (which are actually small nuts) have a washer under them, be careful not to lose them, one stayed out the other fell out..but was safe..





Enjoy!!

_________________
Misano B5 RS4 - Now weekend runner
Pearl white 20v ur quattro - mmmm!
Audi 80 B4 avant alpine white! Beast haha
Daily mk5 gti
S3 8l Imola! - Sold
Red S3 - Sold
Black 1.9TDI A3 - Sold
View user's profileSend private message
Display posts from previous:
Post new topicReply to topic

Share |

 Jump to:


View next topic
View previous topic
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum






Powered by phpBB © phpBB Group



AudiSRS.com is not affiliated with Audi in any way. The Audi name and logos are registered trademarks of Audi
The content on this website has not been endorsed by Audi, nor has it been verified for correctness by AudiSRS.com.
All other logos and trademarks in this site are property of their respective owners.
The comments are property of their posters, all the rest are copyright by AudiSRS.com
